Crab and shrimp processing
The seafood processing plant receives and processes Dungeness Crab directly from Grays Harbor in Westport, Washington. The facility produces whole cooked crabs, crab sections, fry legs, and crab meat. They are also the largest processor of Pacific cold-water shrimp in the world.
Plant wastewater is generated during raw product washing, evisceration, cooking, cooling and general production floor sanitation. The water consists of gritty and oily materials which contribute to elevated levels of TSS and COD.

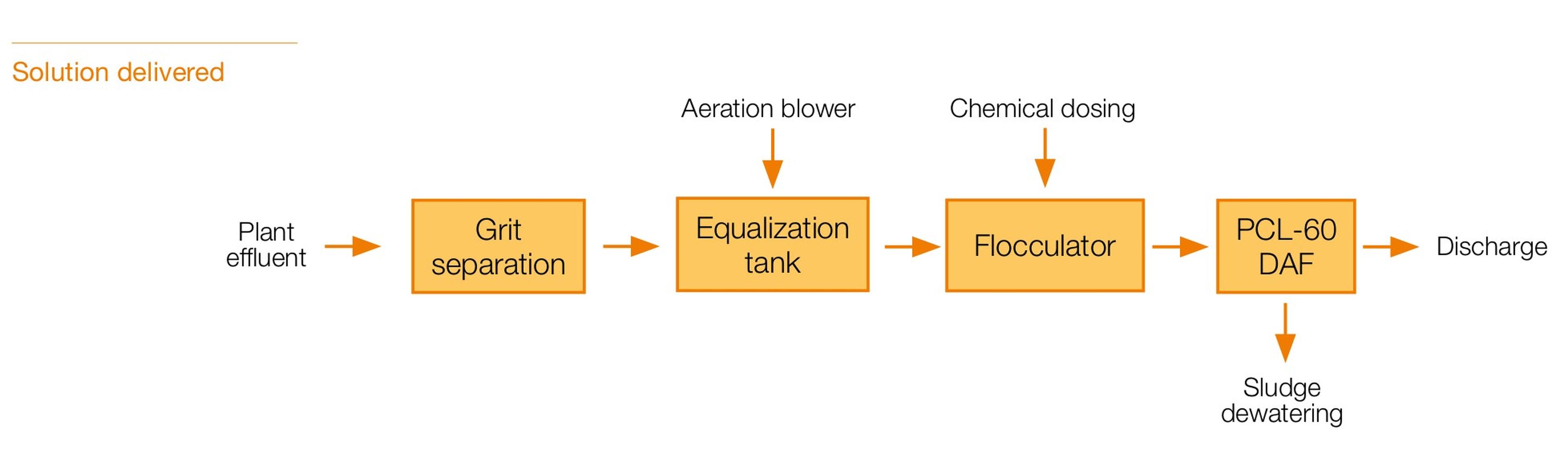

The wastewater pre-treatment system consists of preliminary grit separation and equalization, followed by chemical treatment in a pipe flocculator. A plate-pack style dissolved air flotation system separates the floating solids and discharges effluent that meets the water quality requirements.
Equipment supplied
114 m³ aerated EQ tank
Chemical dosing equipment
F-8 flocculator

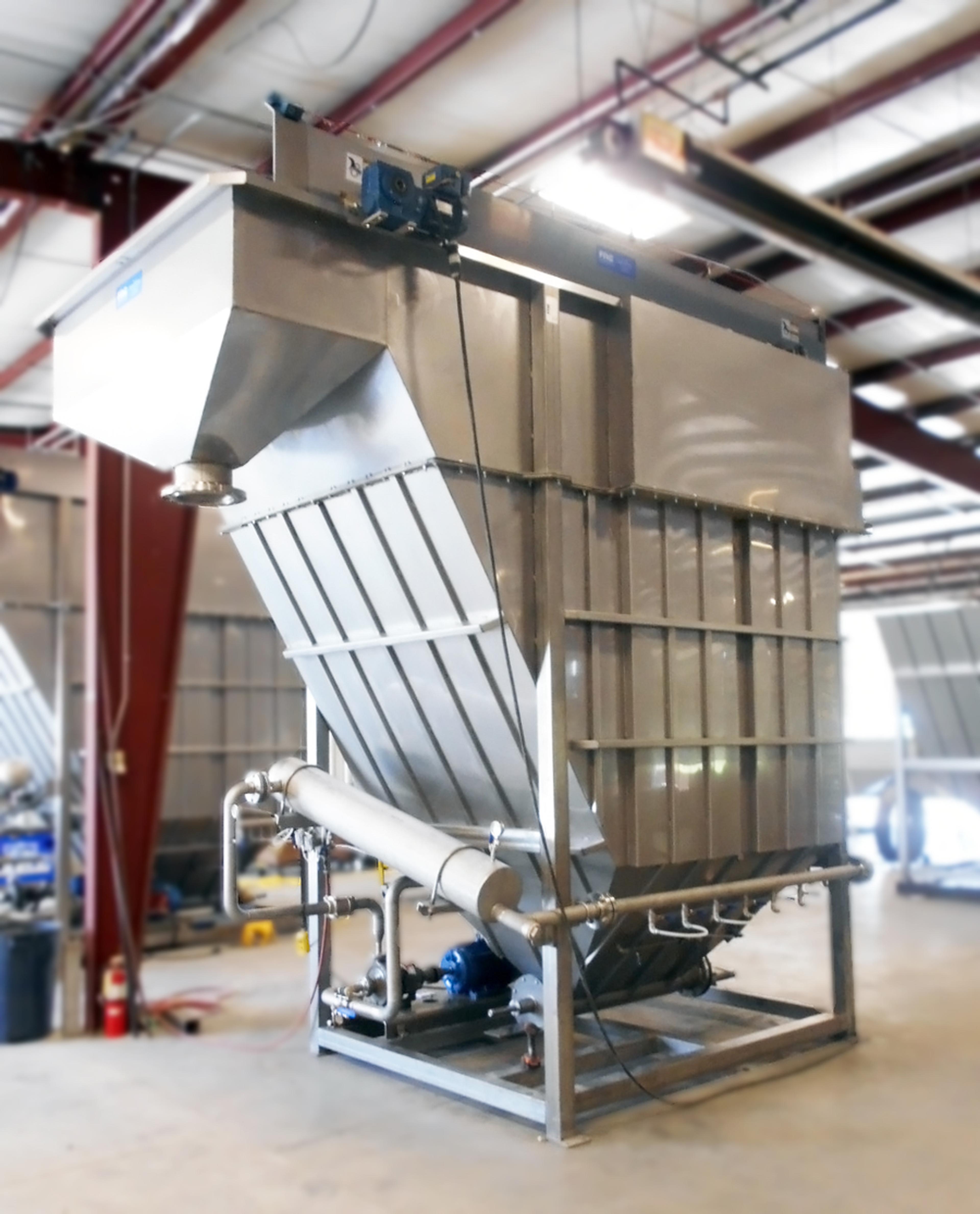

PCL-60 DAF system
Electrical control panel
DAF sizing calculations
)
)
| Design parameters | Discharge requirements | |
|---|---|---|
| Flow | 3.274 m³/d | |
| TSS | 2.000 mg/l | < 100 mg/l |
| COD | 3.000 mg/l | < 1.000 mg/l |
| pH | 4 - 9 | 6.5 - 7.5 |
)
