Pet food production
The plant processes a variety of organic ingredients including chicken, beef, lamb, vegetables, and rice into specially formulated pet food products.
Plant wastewater largely comes from washing raw ingredients and sanitizing process equipment. It carries varying concentrations of oil and grease, and has a weekly surge of wastewater with high pH from the use of cleaning chemicals.

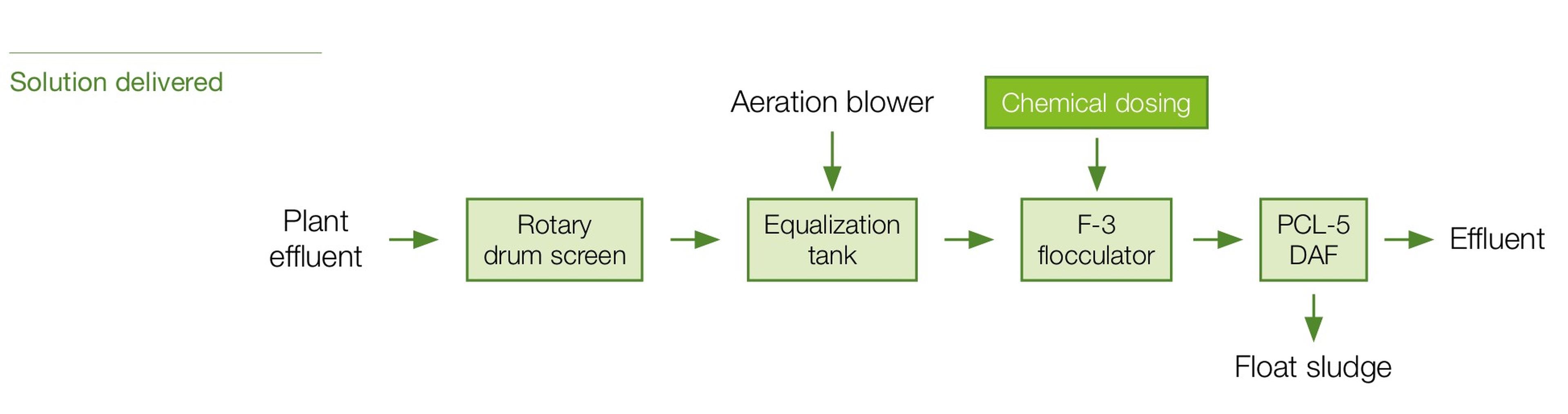

The delivered wastewater treatment solution included a preliminary screen, equalization (EQ) tank, chemical dosing equipment, pipe flocculator, DAF unit, and sludge holding tank, along with all necessary ancillary controls, monitoring systems, pumps, and access platforms to provide a complete installation. From purchase to start-up, the project was completed within 12 weeks.
Equipment supplied

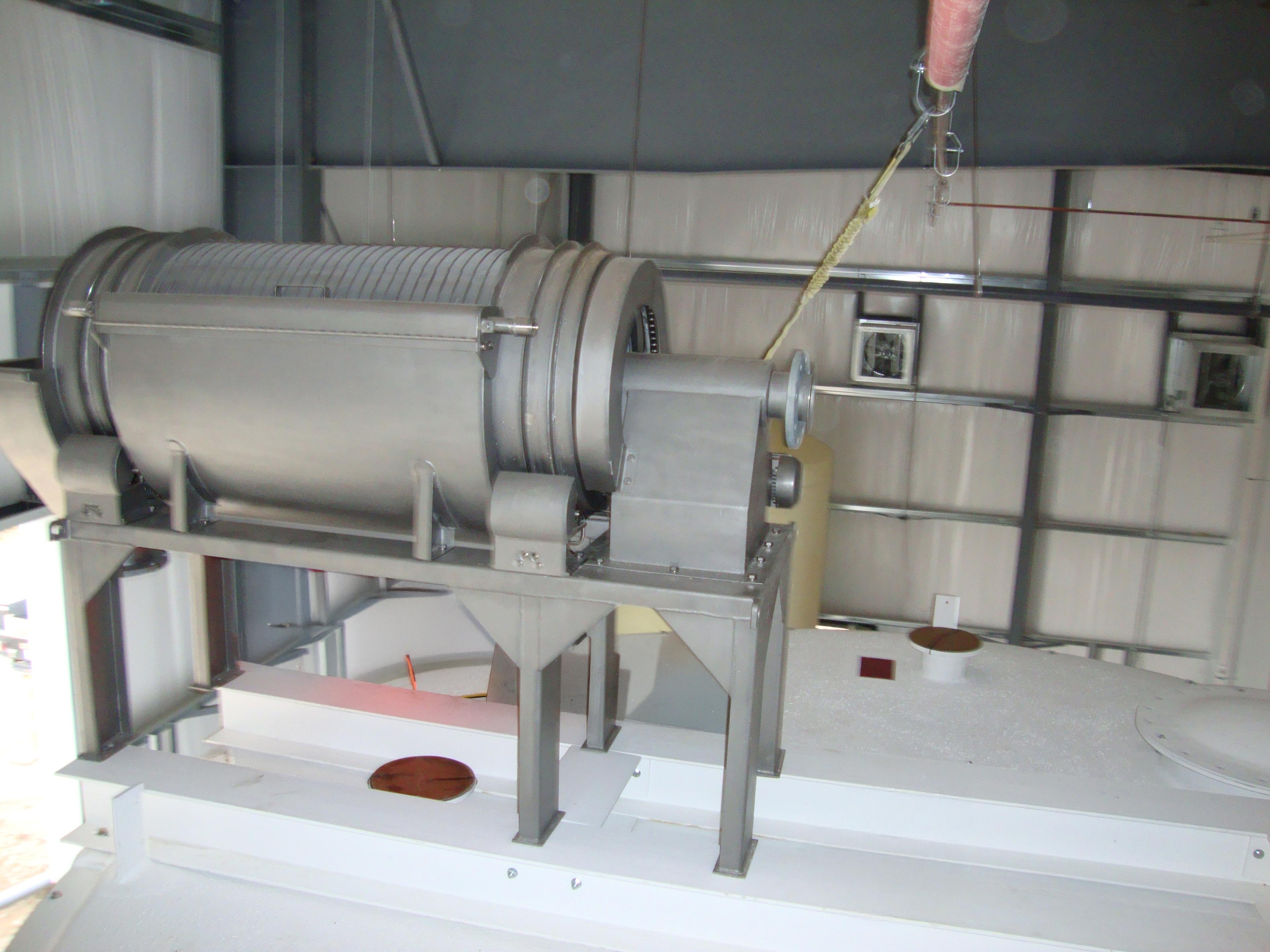

Rotary drum screen
75.7 m³ gal EQ tank
PCL-5 DAF
F-3 flocculator

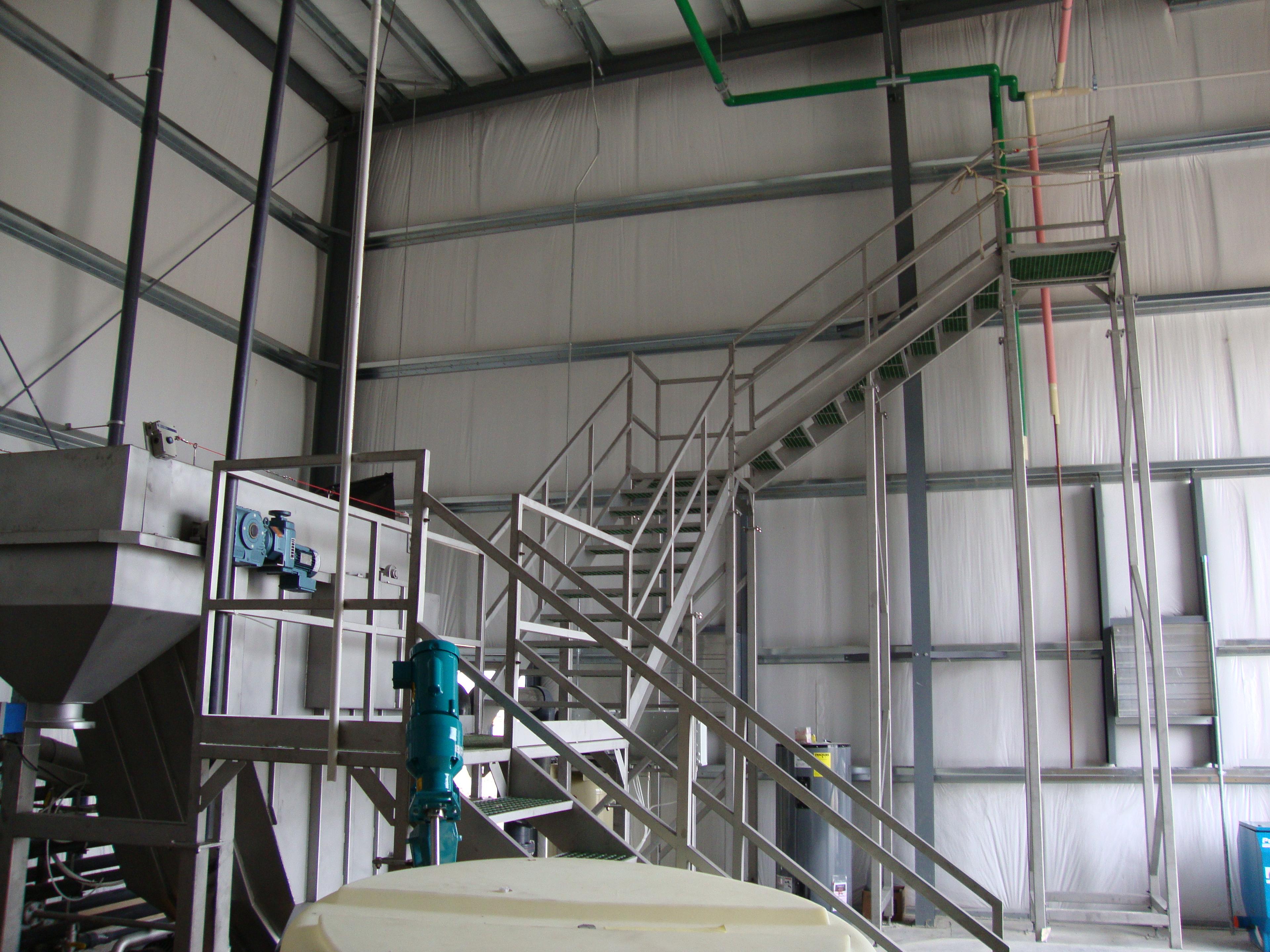

Stainless steel platform

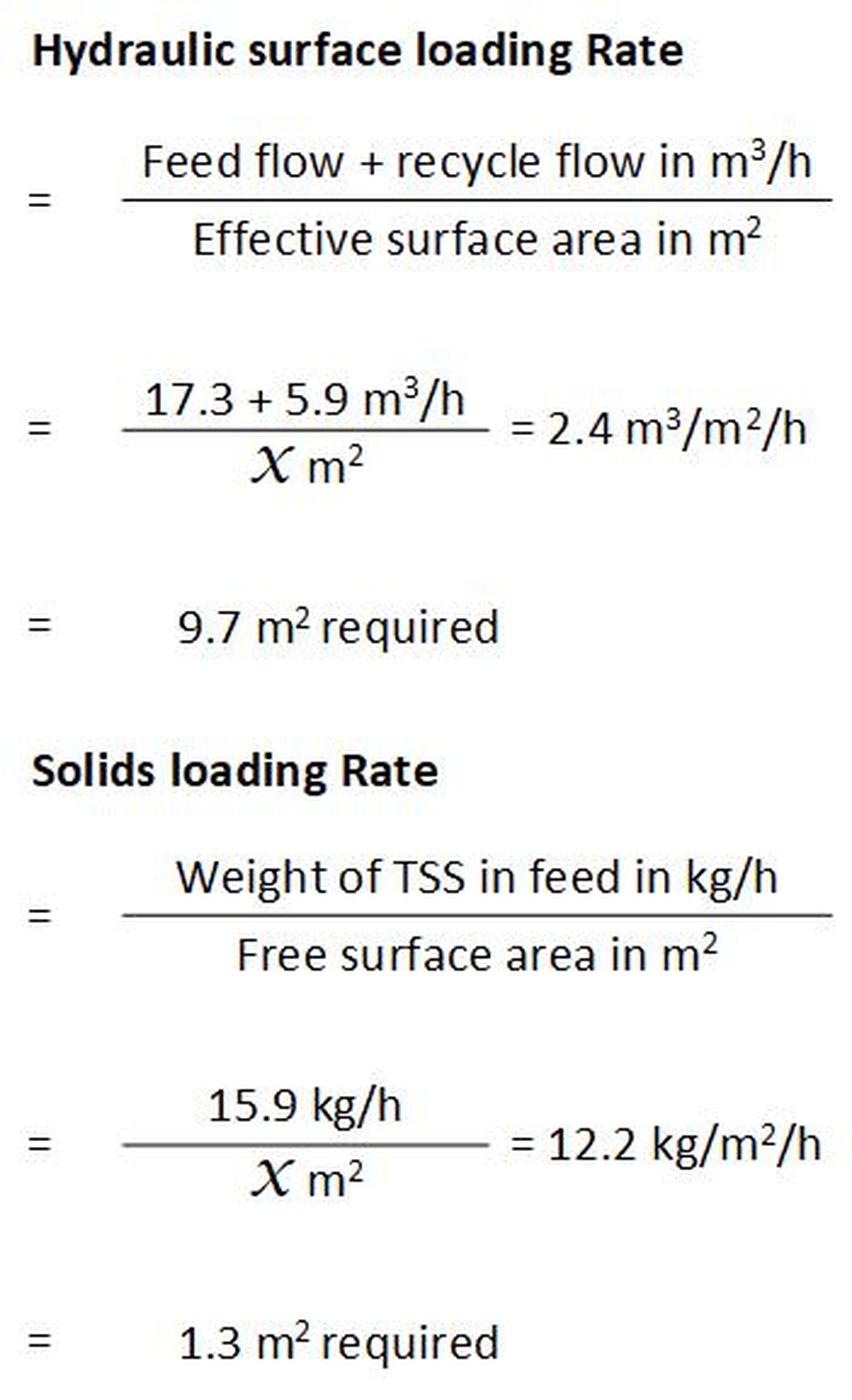

DAF sizing calculations
)
)
)
| Design parameters | Discharge requirements | |
|---|---|---|
| Flow | 416.4 m³/d | |
| TSS | 350 mg/l | 300 mg/l |
| FOG | 900 mg/l | 150 mg/l |
| BOG | 450 mg/l | 300 mg/l |
)
