Yogurt production
The dairy processing plant in upstate New York produces a variety of yogurt products for distribution in grocery stores around the country.

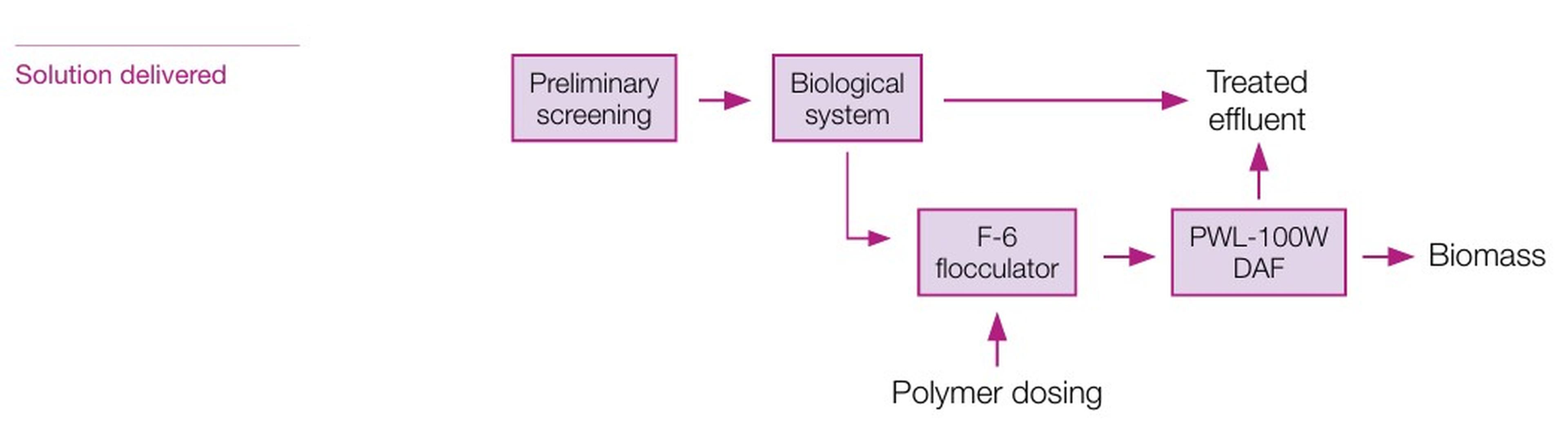

In the wastewater treatment process a preliminary screen removes bulky solids before the water is treated biologically in a continuous waste activated sludge system. As the biomass grows and is wasted from the system, a DAF tank separates the solids from the water and concentrates them to 3-5% dryness in preparation for conditioning and dewatering. The effluent from the DAF unit is devoid of solids and is combined with the effluent from the aeration basin for discharge into the sewer line.

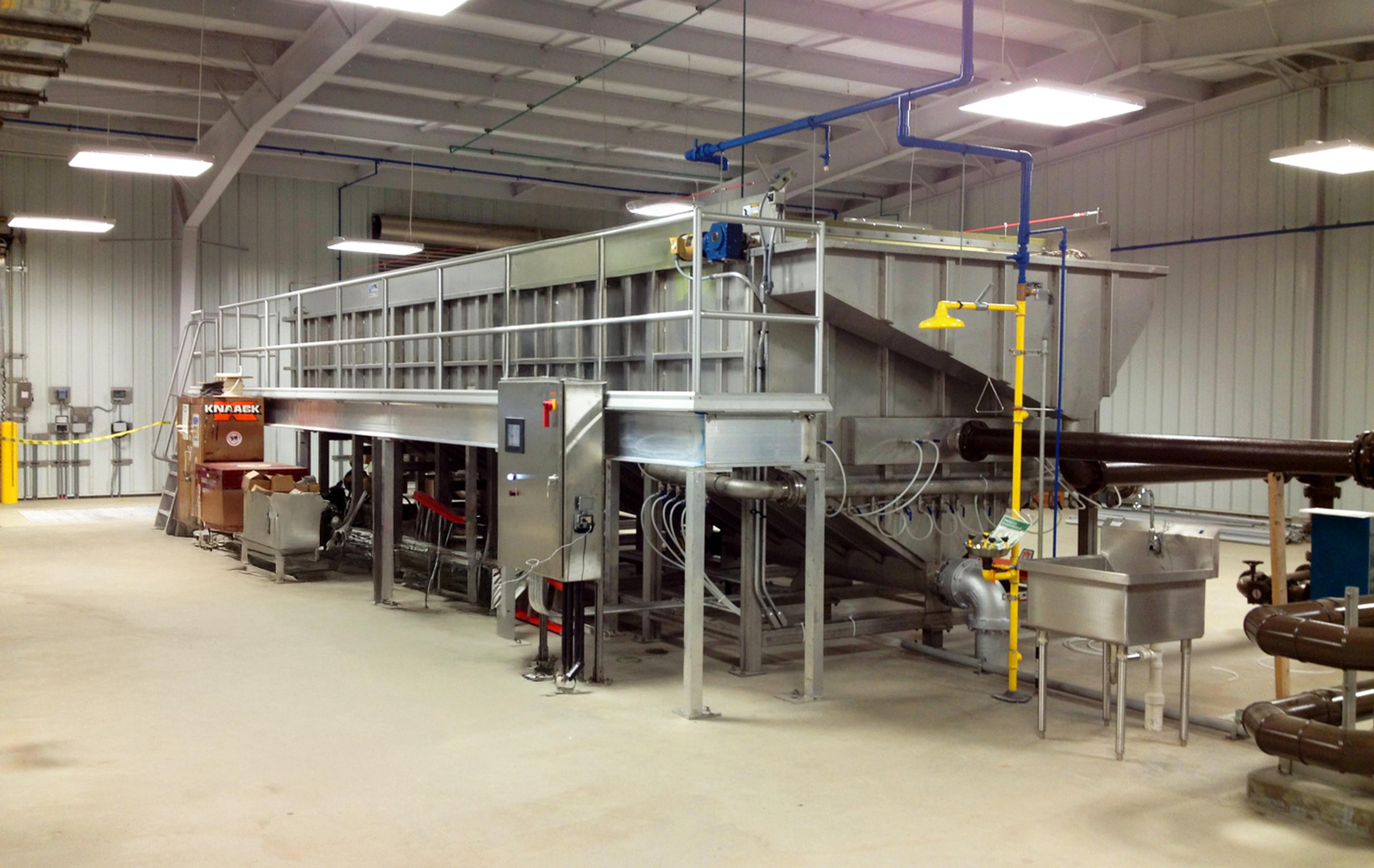

Equipment supplied
PWL-100W DAF unit
F-6 short flocculator
Electrical control panel
Pneumatic controls
Access catwalk

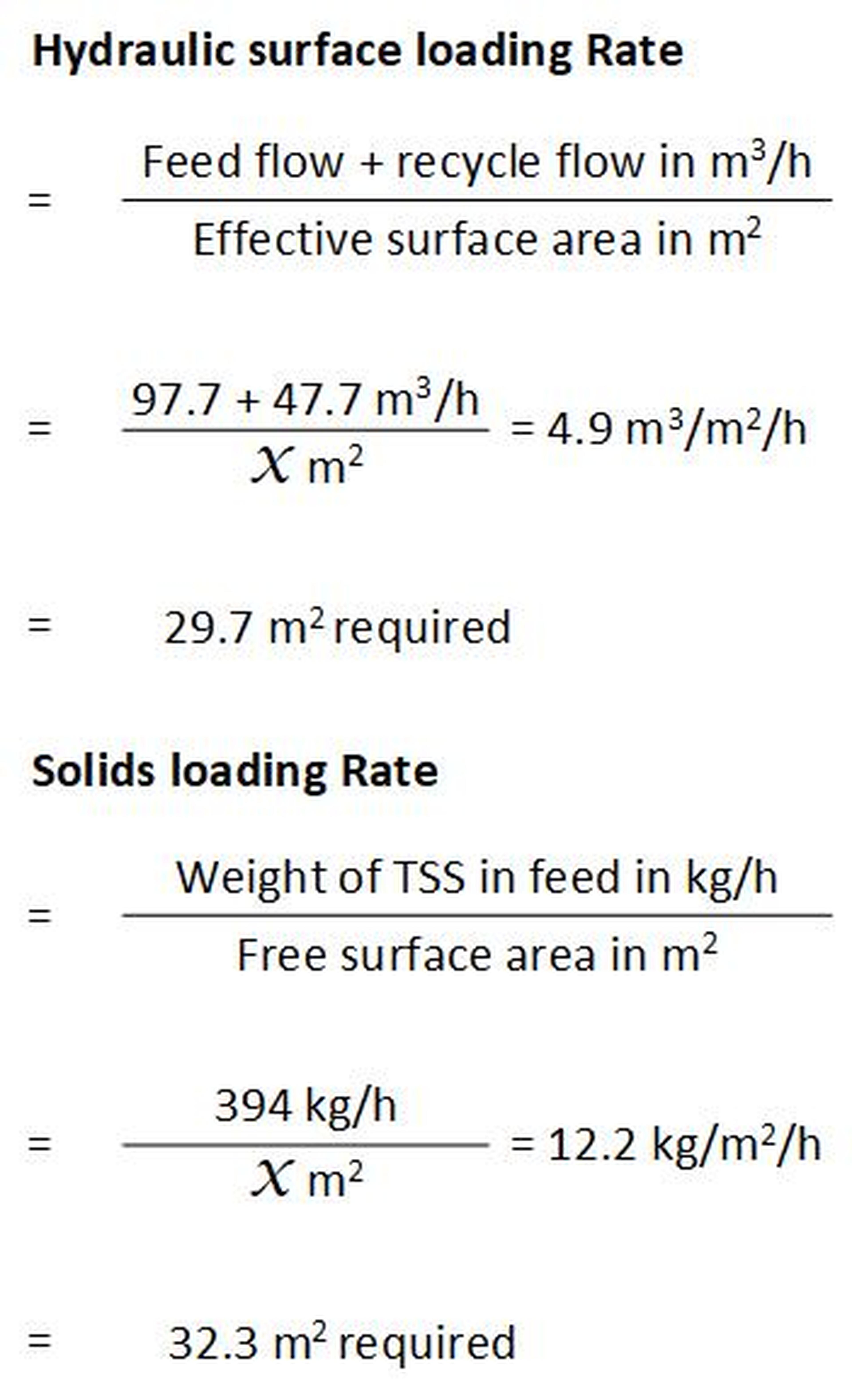

DAF sizing calculations
)
)
)
| Design parameters | Discharge requirements | |
|---|---|---|
| Flow | 3.482 m³/d | |
| MLSS | 3.000 mg/l | 150 mg/l |
)
