DynaCloth

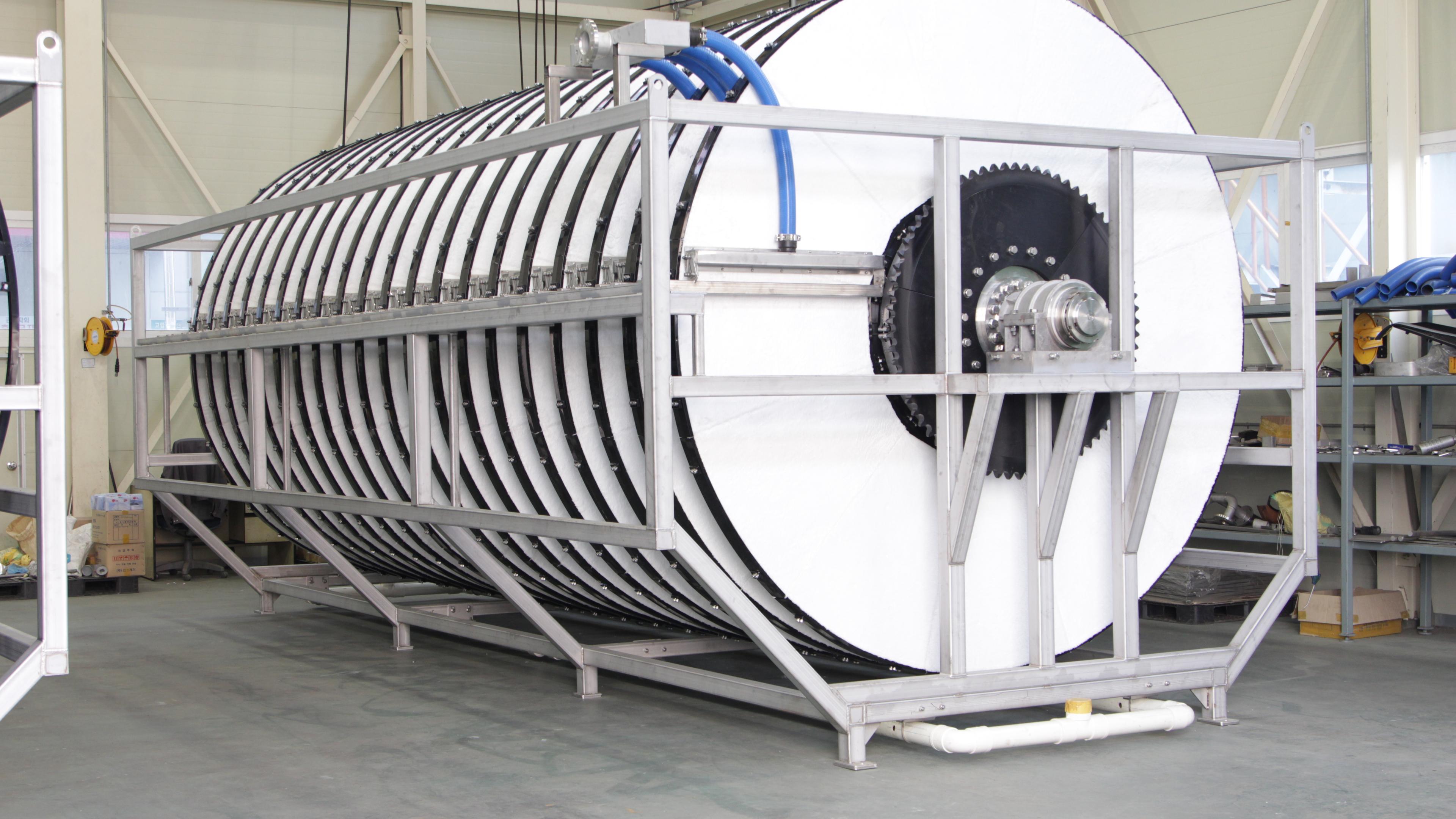

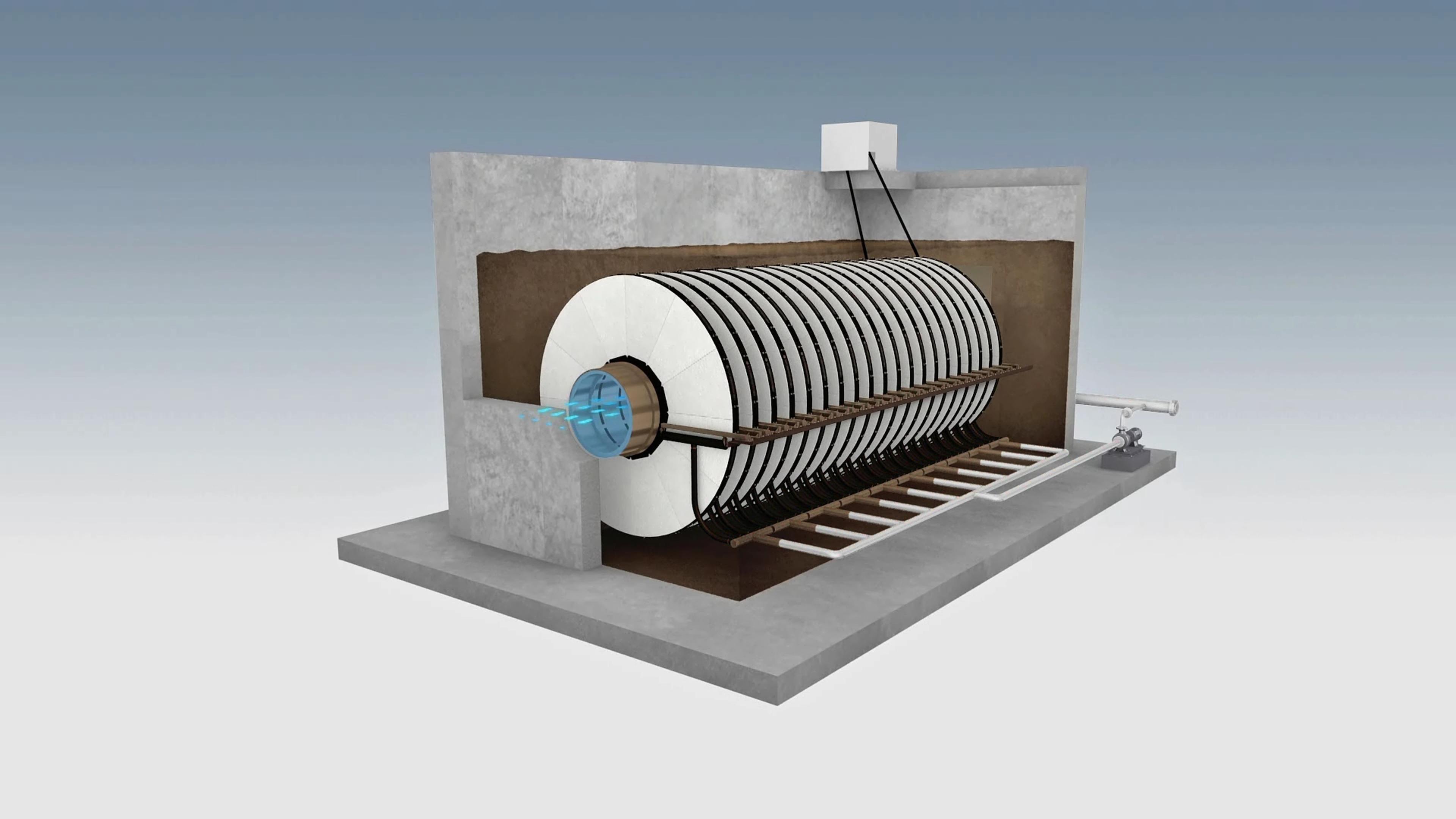

The DynaCloth fibre filter provides high quality filtration performance for municipal and industrial water, wastewater, and water re-use applications using the pile cloth filtration technique.The proprietary filter cloth consisting of individual pile fibres woven into a backing cloth and mounted on both sides of each disc on easily removable filter panels provides a combination of sieve and depth filtration.The DynaCloth produces high quality filter effluent of less than 5mg/l SS and is suitable for a range of treatment applications to reduce SS, BOD, P, etc..Available in four discs sizes 0.7m, 1m, 2.1m and 3m with up to 32 discs per DynaCloth filter depending on the model.
Product information
Gravity or pumped flow
Low headloss
High separation efficiency
High quality effluent
High flowrate capacity
High solids loading ability
Accepts shock loads without bypassing
High pressure backwash not required
Continuous filtration during backwash
Low backwash water reject volume
Reduced need for standby capacity
Compact footprint
Long Filter cloth life
Easy cloth removal
Chemical cleaning not required
High operational reliability
Low maintenance requirements
Low maintenance costs
Low energy consumption
Simple operation

Applications
Tertiary treatment after clarifiers
Secondary clarification in place of final clarifier after fixed film processes
Phosphorous removal in combination with co-precipitation
Phosphorous removal with one or two stage chemical pre-treatment
Reduction of micropollutants and pharmaceutical residuals in combination with PAC (Powdered Activated Carbon)
Membrane pre-treatment
Process water treatment
CSO’s (combined sewer overflows)
Primary treatment of waste water
UV pre-treatment
Water intake filtration
Reuse filtration
Cooling tower filtration
