SuperSettler LT

The SuperSettler separator was developed by the Axel Johnson Institute in Sweden during the 1970s and has become a world leader in SuperSettler technology. SuperSettler separators are designed to maximise sedimentation in the smallest possible space. SuperSettler’s popularity is due to several factors; one of the most important being the well-proven design that contributes to the excellent safety and reliability that characterises SuperSettler.

HIGH CAPACITY ON A SMALL STRUCTURAL SURFACE
SuperSettler can reduce your footprint to as little as 10% of a traditional sedimentation tank. That makes it ideal for the expansion of capacity of existing water treatment plants, or when the surface is expensive or limited.

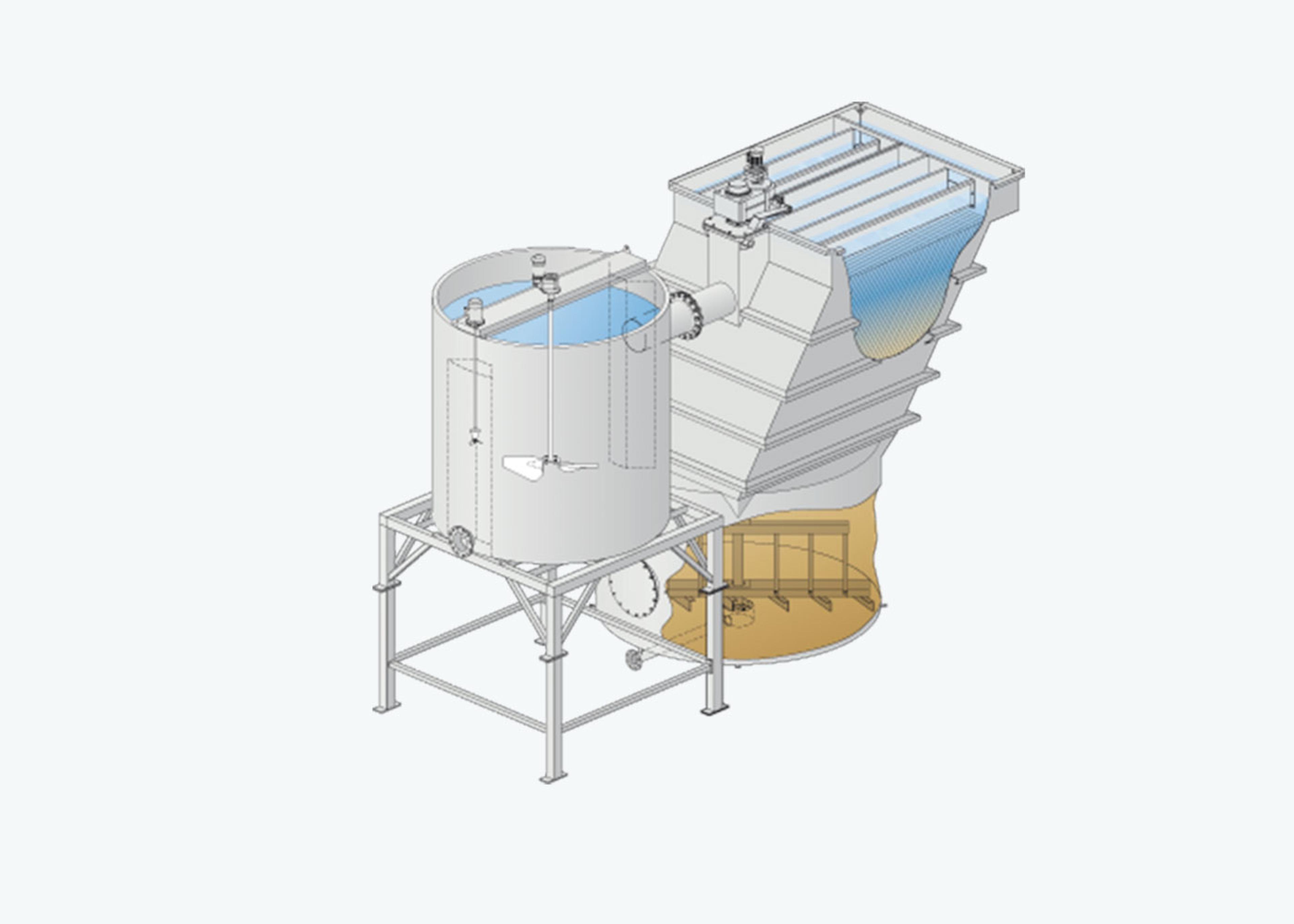

LT – SuperSettler tank model
The SuperSettler model LT is available in several standard sizes. The model LT is a combined SuperSettler separator and sludge thickening device with a rotating sludge scraper. The volume in the tank is greater than in a sludge hopper. These are units for flows and applications with high levels of sludge and a thickened sludge outlet. You can also choose a flocculation tank with a fast mixer and agitator to accelerate the flocculation and sedimentation.

FUNCTIONAL DESIGN
SuperSettler separators provide excellent separation and purification performance in a variety of applications, such as:

Municipal water and waste water treatment plant

• Pre-treatment

• Wash water treatment/purification

• Primary and secondary sedimentation

• Final polishing

• Sludge thickening

Industrial applications

• Industrial process water

• Chemical industry – purification and thickening

• Paper and pulp industry

• Iron and steel industry, reduction of scale residues

• Metalworking – the cleaning of metal surfaces

• Waste water with metal oxide residues

• Purification of the water from the filtering processes

• Biological waste water treatment

• Recirculation of water in the vegetable industry

• Treatment of scrubbing water
