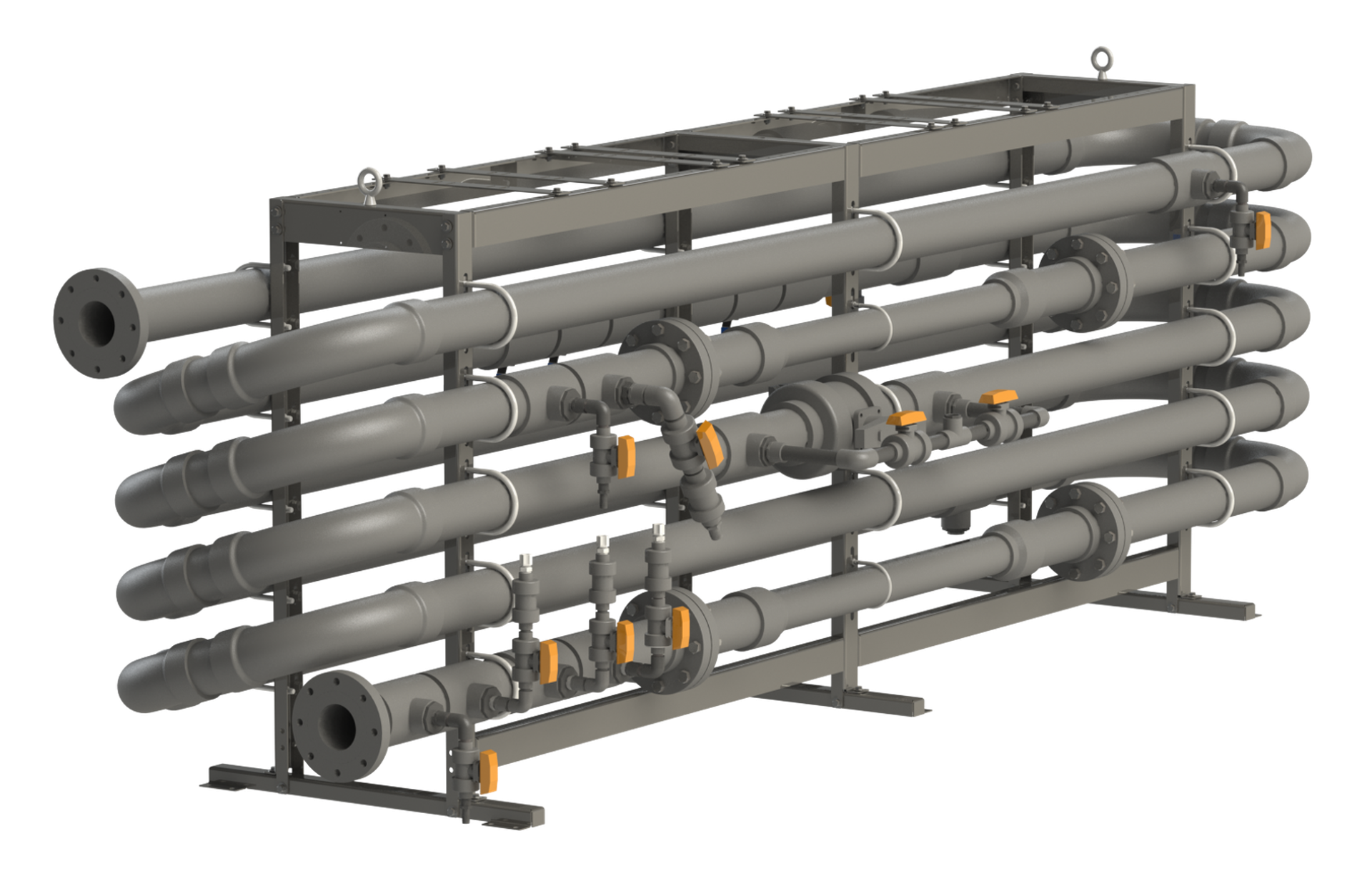

F series flocculator
The F series flocculator is an inline mixing and agitation system with no moving parts. It is used for chemical pretreatment before dissolved air flotation (DAF). Chemicals are dispersed into the wastewater using injection ports, static mixing zones, and long pipe bends. This creates controlled mixing and helps protect the floc.
The F series allows chemicals to be added in steps and mixed evenly before DAF. Sampling points help operators tune chemical dosing when influent conditions change and keep performance stable.
)
Product information
How the F series flocculator works
Wastewater flows through the F series flocculator inline. Chemicals are added at dedicated injection points along the flow path.
Static mixing zones and long-radius pipe bends provide controlled mixing without moving parts. This supports effective coagulation and flocculation while protecting floc structure.
Sampling points allow operators to check performance and optimize dosing before the flow enters the downstream separation stage.
Key features
Non-mechanical, static mixing design with no moving parts
Air injection ports for microbubble introduction

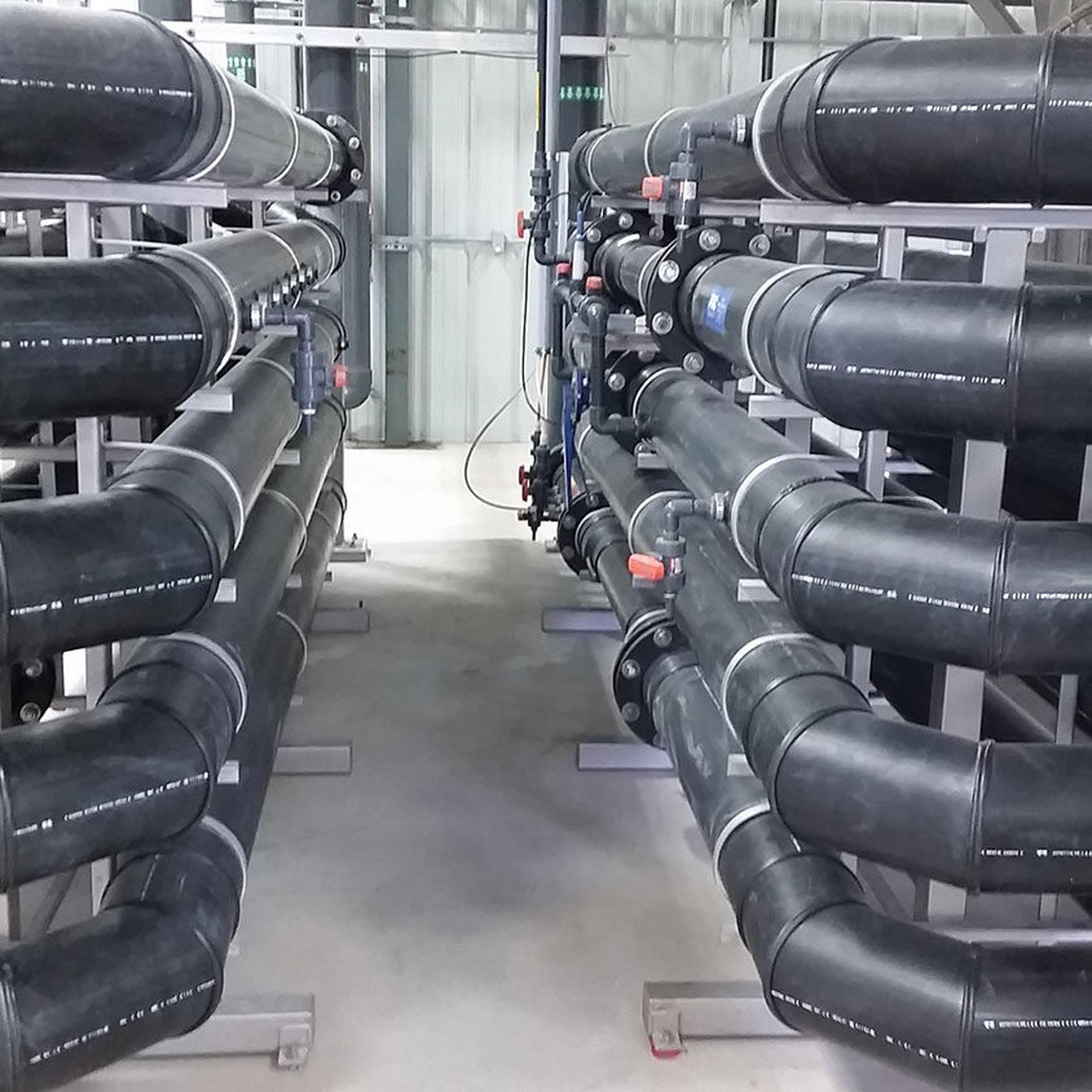

Wide radius bends to protect floc integrity

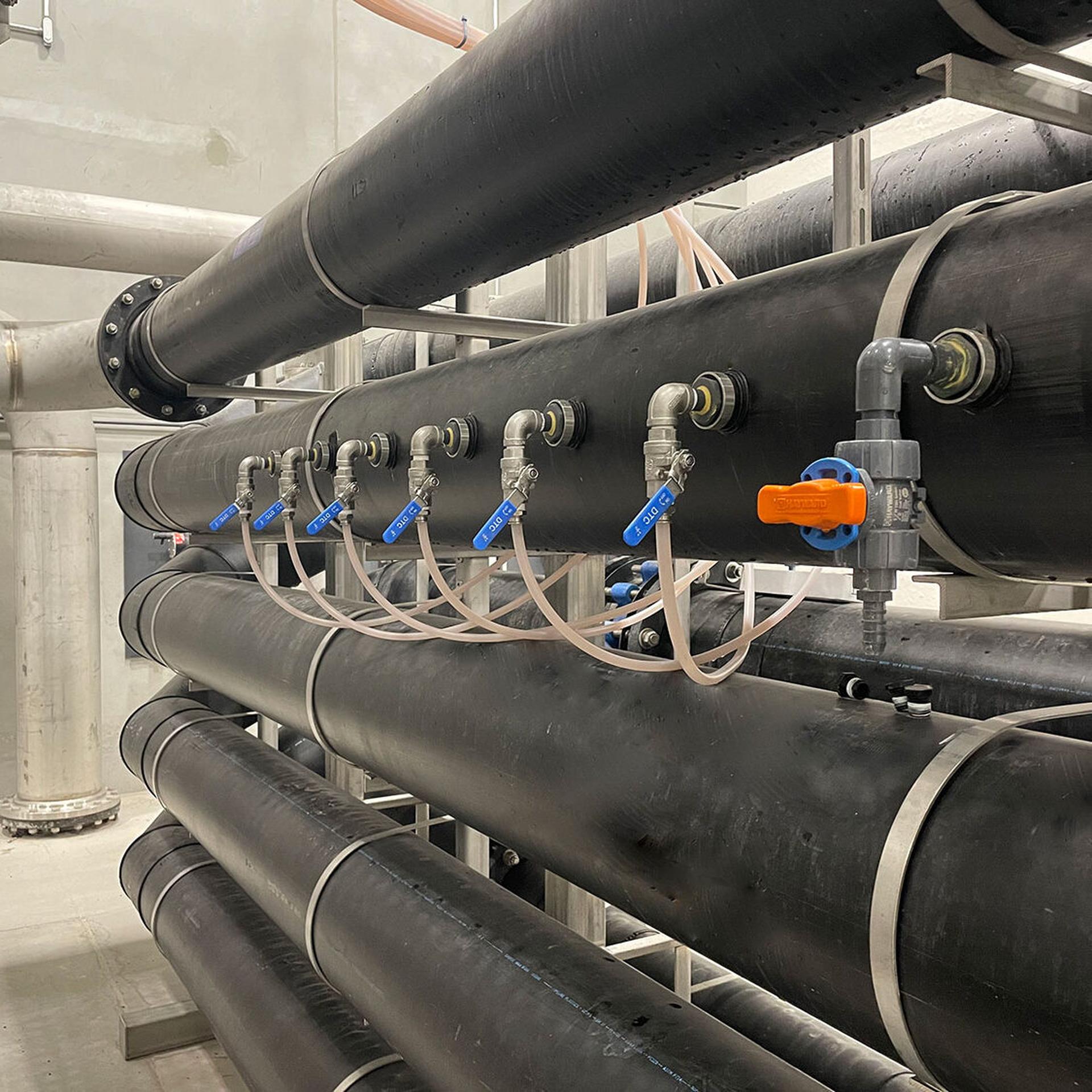

Chemical dosing and sampling ports to support testing and optimization

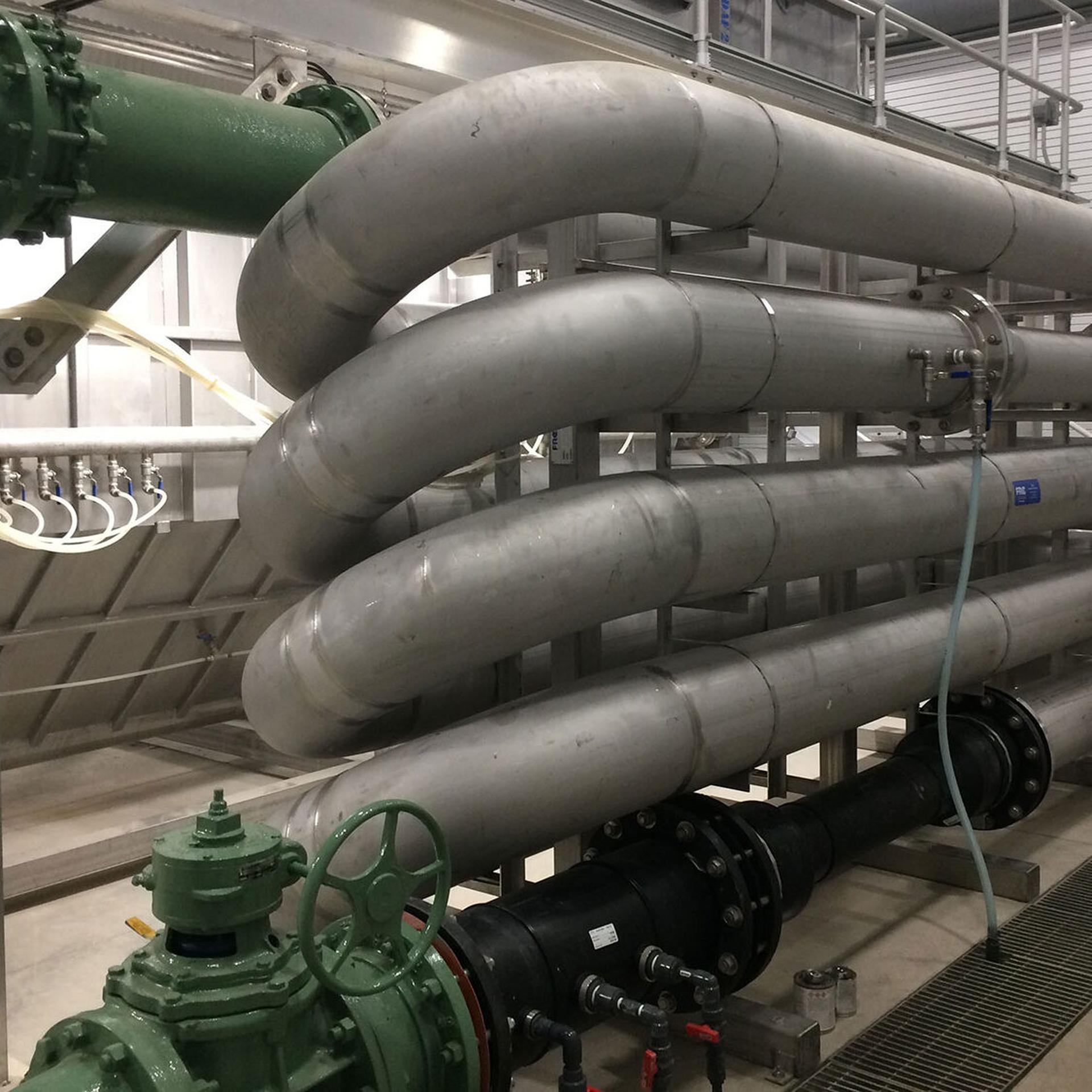

Materials available in HDPE, PVC and stainless steel (304/316)
Performance and design data
Flow capacity: up to 908+ m3/h
)
)
)
)
Frequently asked questions
What is the F series flocculator used for?
It is used for controlled coagulation and flocculation ahead of DAF to improve capture of suspended solids and emulsified contaminants.
How does the F series flocculator help protect floc integrity?
Static mixing zones and long-radius bends promote mixing while limiting shear forces that can break formed flocs.
Can multiple chemicals be dosed in the flocculator?
Yes. The system includes dedicated injection ports for staged dosing of pH correction, coagulant and polymer, along with sampling points to support optimization.
Does the flocculator include moving parts?
No. The F series is a non-mechanical flocculation system with no moving parts.
